Use in hotels, restaurants, Japanese cuisine, various business locations, kitchens of hot pot restaurants or specialty restaurants, manufacturing plant equipment.Provide disinfection, sterilization, odor removal, remove fishy stink, water purification and preserve freshness.
Air Ozone
| Voltage | AC110V~AC230V (DC12V Adapter) |
| OZONE（O3） OZONE(O3) Production Volume | OZ-80AS 80mg / Hr ± 10% OZ-100AS 100mg / Hr ± 10% OZ-120AS 120mg / Hr ± 10% |
| Size | 156(H)*86(L)*84(D)/mm |
| Power Consumption | OZ-80AS 5.5W OZ-100AS 7W OZ-120AS 9W /± 10% |
| Weight | OZ-80AS 500g OZ-100AS 520g OZ-120AS 520g |
| Suitable Space | OZ-80AS 3-15ping OZ-100AS 3-25ping OZ-120AS 6-30ping |
| Temperature Range for Application | -5°C~45°C |
Professional Water Immersion Model
| Voltage | Personalization |
| Water Discharge | 12 ~ 25 ℓ / min |
| OZONE (O3) Density in Water | 0.8 ppm ~ 1.8 ppm |
| OZONE (O3) Density in Air | Below 0.01 ppm |
| Power Consumption | 45W |
| Size | 350(H)*400(L)*130(D) mm |
| Temperature Range for Application | 5°C ~ 45°C (not exceed 60°C) |
| Weight | 8.5 kgs |
| Else | 1. Continuous use 4 hours requires 30 minutes break 2. required water pressure above 1 kg/cm² 3. Accessories: BrightOzone's special stainless steel flexible pipes |
Professional Water Immersion Model
| Voltage | Personalization |
| Water Discharge | 12 ~ 15 ℓ / min |
| OZONE (O3) Density in Water | 0.8 ppm ~ 1.8 ppm |
| OZONE (O3) Density in Air | Below 0.01 ppm |
| Power Consumption | 45W |
| Size | 350(H)*400(L)*130(D) mm |
| Temperature Range for Application | 5°C ~ 45°C (not exceed 60°C) |
| Weight | 8.5 kgs |
| Else | 1. Continuous use 4 hours requires 30 minutes break 2. required water pressure above 1 kg/cm² 3. Accessories: BrightOzone's special stainless steel flexible pipes |
Professional Water Immersion Model
| Voltage | Personalization |
| Water Discharge | 12 ~ 25 ℓ / min |
| OZONE (O3) Density in Water | 0.8 ppm ~ 1.8 ppm |
| OZONE (O3) Density in Air | Below 0.01 ppm |
| Power Consumption | 45W |
| Size | 400(H)*350(L)*135(D) mm |
| Temperature Range for Application | 5°C ~ 45°C (not exceed 60°C) |
| Weight | 12 kgs |
| Else | Can be used with pressurized motors |
Professional Spray Gun Combination Model
| Voltage | Personalization |
| Water Discharge | 12 ~ 14 ℓ / min |
| OZONE (O3) Density in Water | 1 ppm ~ 1.4 ppm |
| OZONE (O3) Density in Air | Below 0.01 ppm |
| Size | Machine: 1300(H)*520(L)*760(D) mm Spray gun: 650(H)*200(L)*40(D) mm |
| Temperature Range for Application | 5°C ~ 45°C (not exceed 60°C) |
| Weight | 84 kgs (including fittings) |
| Else | 1. required water pressure above 1.5 kg/cm² 2. Using clean water as backup source of water 3. Length of power line is 10 m |
Professional Water Immersion Model
| Voltage | Personalization |
| Water Discharge | 5 tons / hr |
| OZONE (O3) Density in Air | Below 0.01 ppm |
| Size | 800(H)*395(L)*140(D) mm |
| Temperature Range for Application | 5°C ~ 45°C (not exceed 60°C) |
| Else | Must be used with pressurized motors |

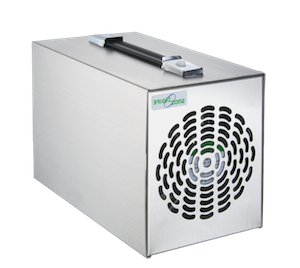

Air Use Model
| Voltage | Personalization |
| O3 Production Volume | HI:320 mg / Hr ± 10% LO:160 mg / Hr ± 10% |
| Operating Temperature | 0°C ~ 40°C |
| Power Consumption | 39W |
| Size | 172(H)×140(L)×240(D) mm |
| Weight | 3 kgs |
| Suitable Space | 25 ~ 50ping / 83 M² ~ 165M² |
Commercial Model
| Voltage | Personalization |
| Water Discharge | 12 ~ 25 ℓ / min |
| OZONE (O3) Density in Water | 0.6 ppm~1.2 ppm |
| OZONE (O3) Density in Air | Below 0.01 ppm |
| Power Consumption | 15W |
| Size | 215(H)*180(L)*110(D) mm |
| Temperature Range for Application | 5°C ~ 45°C (not exceed 60°C) |
| Weight | 4.2 kgs |
| Else | required water pressure above 1 kg/cm² |
